What's in the box

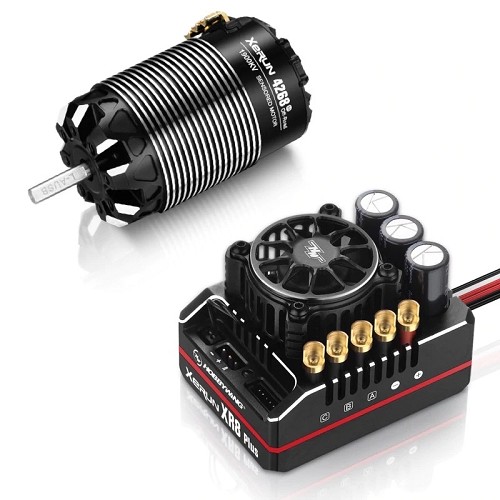

- 1x XR8 Plus G2s ESC
- 1x Xerun 1/8th G3 Brushless Motor
p/n XR8 PRO Combo 1/8th Lipo Motor
38020500 Combo 4268 A OffRoad 2-4S Xerun 4268 SD G3 1900kv
38020501 Combo 4268 B OffRoad 2-4S Xerun 4268 SD G3 2200kv
38020502 Combo 4268 A OnRoad 2-4S Xerun 4268 SD G3 2000kv
38020503 Combo 4268 B OnRoad 2-4S Xerun 4268 SD G3 2800kv
38020504 Combo 4274 C OffRoad 2-6s Xerun 4274 SD G3 2250kv
Full-sensored Mode Supported
The ESC can work the full-sensored mode at all times
(when pairing it with a HOBBYWING matching motor).
MEGA Cooling Effect
HOBBYWING's patented FCD system. The focus of the XR8 Plus G2S, is the all new, and patented fan technology. Cooling to the ESC increases performance and reliability. The cooler the ESC can stay, the better it works. For many years, racers simply bolted on a larger or faster fan. This did move more air, however it also increased the power demands of the ESC's internal BEC. This creates internal temperature rises and wear and tear on the ESC's BEC that lead to reliability and performance losses. By allowing more air to flow through the frameless design, loads from the fan actually go down (less power draw) while the airflow and cooling are increased. This new cooling system ensures maximum airflow with no losses through higher fan power draw.
Damage to a fan can be devastating for a racer. Something that Hobbywing's design team took into serious consideration was creating a fan that did not break even in the most demanding conditions. New design, materials, and guards ensure the fan will live a long healthy life and not be damaged by even the most demanding racers.
Durable frameless fan
The all-new frameless fan blades uses a special material and are extremely hard and reliable. It greatly reduces the damage of the fan blades caused by the impact of small stones, sand and other foreign objects. Thus, reduces the failure rate of the fan than compared with the traditional pbt fan.
1/8th power system, Boost & Turbo Timing Technology
This ESC pairing with Hobbywing motor can start Turbo Timing technology which succeeded in 1/8th On-Road contest. It supports 48 degrees Boost and Turbo Timing. When pairing with Hobbywing 4268/4274 G3 motor, the max. speed can be promoted by 50%. Easily win your rival.
Reverse Voltage Protected
The XeRun XR8 Plus G2S features complete reverse voltage protection. Often battery packs get "Woops" connected and power is crossed. The XR8 Plus G2S is protected from this causing damage to the ESC.
RPM speed limit function
he ESC is able to support up to 6 different speed (RPM) selections to meet the needs and demands of various competitions in the world. It can be programmed through using the latest OTA Bluetooth module or the traditional 3in program box.
Programming / Upgrading / Data reading wirelessly
With Hobbywing's OTA module and smartphone (with the HOBBYWING HW Link App installed), the user can program parameters, upgrade firmware and heck relevant data of the ESC
Easy Obtain Running Status with Real-time Data Recording Function
With Hobbywing's OTA module, Connect the HW Link App to the ESC and open the real-time data recording function, to check the throttle, voltage, current, temperature, RPM and other data in real-time. Easy obtain running status of ESC and motor.
Super Internal BEC
The built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step:0.1V) allows the use of various standard servos, high voltage servos.
Capacitor Thermal Protection
Capacitor thermal protection implemented by the ESC will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.
Custom ultra-soft 11AWG silicone wire
The ultra-soft 11AWG silicone wire is specially chosen for this product. The wire is ultra-flexible and low in resistance, making it the perfect combination to for your electronics.
The ESC is IP5X. Its excellent dustproof performance can easy to overcome various On-Road & Off-Road contest track.
Customized solder tabs, Perfect your solder
The solder tabs are specially customized by Hobbywing.
They are made wider, a larger surface area in order to.
